5.0 DOHC Coyote Carbureted Intake Manifold

Roll over to magnify and click to enlarge

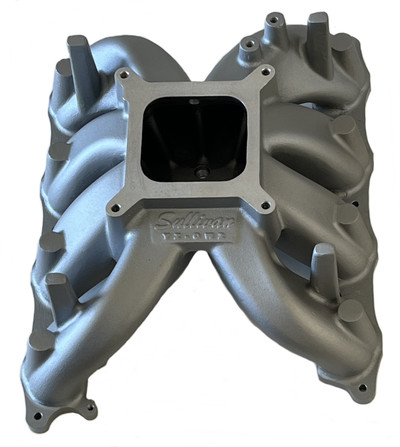

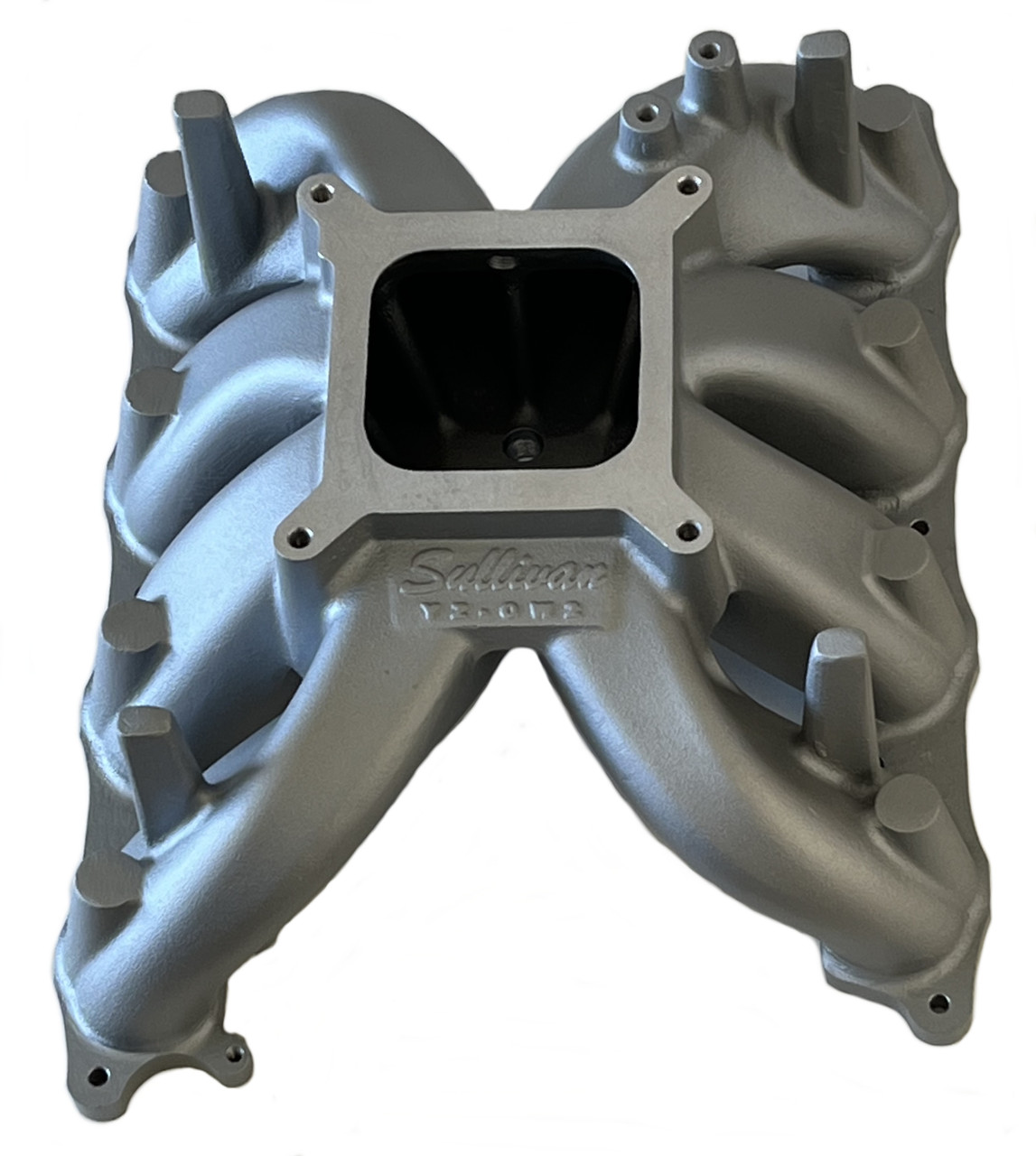

  • Coyote 5.0 Carbureted Intake Manifold

Product Description

This is our single plane intake manifold developed for all versions of the 5.0 Coyote DOHC engine. The intake manifold features:


  • Utilizes standard Holley© bolt pattern for the throttle body or carburetor.
  • Fuel rail mounts are cast in to allow for Sullivan Performance fuel rails.
  • The throttle linkage mounts are standards within the industry allowing for the use of existing aftermarket throttle cable brackets.
  • Large boss cast into the bottom of the plenum to allow for any vacuum configuration.
  • Nitrous bosses cast into the bottom of each runner to allow for port nitrous systems.
  • Available with or without injector holes drilled to enable the use of a carburetor.
  • Generous amount of material to allow for port matching.
  • Injected version has provisions for OEM Ford MAP/temp sensor
  • Reference ports for vacuum at rear of intake
